Low Molecular Weight DNA Ladder

Catalog #	Concentration	Size	List Price	Quantity	Your Price
N3233L	500 µg/ml	500 gel lanes	$429.00		$386.10
N3233S	500 µg/ml	100 gel lanes	$109.00		$98.10

Catalog #	Size	List Price	Your Price
N3233L	500 gel lanes	$429.00	$386.10
N3233S	100 gel lanes	$109.00	$98.10

A proprietary plasmid is digested to completion with appropriate restriction enzymes to yield 11 bands suitable for use as molecular weight standards for both agarose and polyacrylamide gel electrophoresis. This digested DNA includes fragments ranging from 25-766 base pairs. The 200 base pair band has increased intensity to serve as a reference point.

Comes supplied with 1 vial of Gel Loading Dye, Purple (6X), no SDS.

Reagents Supplied

The following reagents are supplied with this product:

NEB #

Component Name

Component #

Stored at (°C)

Amount

Concentration

N3233S -20

	Low Molecular Weight DNA Ladder	N3233SVIAL	-20	1 x 0.1 ml	500 µg/ml
	Gel Loading Dye, Purple (6X), no SDS	B7025SVIAL	25	1 x 1 ml	6 X

N3233L -20

	Low Molecular Weight DNA Ladder	N3233LVIAL	-20	1 x 0.5 ml	500 µg/ml
	Gel Loading Dye, Purple (6X), no SDS	B7025SVIAL	25	1 x 1 ml	6 X

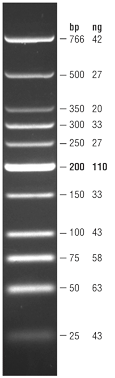

Properties & Usage

Bases

Fragment	Mass (ng)	bp
1	42	766
2	27	500
3	20	350
4	33	300
5	27	250
6	110	200
7	33	150
8	43	100
9	58	75
10	63	50
11	43	25

Effective Size Range

25bp to 766bp

Storage Buffer

10 mM Tris-HCl
1 mM EDTA
pH 8 @ 25°C

Companion Products

Materials Sold Separately

Gel Loading Dye, Purple (6X), no SDS

Notes

We recommend loading 0.5 µg of the Low Molecular Weight DNA Ladder diluted in sample buffer.
This ladder was not designed for precise quantification of DNA mass but can be used for approximating the mass of DNA in comparably intense samples of similar size.
All ends have 5´ overhangs that can be end labeled using T4 Polynucleotide Kinase (#M0201) or filled-in using DNA Polymerase I, Klenow Fragment (#M0210) (1). Use α-[³²P] dCTP or α-[³²P] dGTP for the fill-in reaction.
DNA ladders are stable for at least 3 months at 4°C.
For long term storage, store at -20°C. If samples need to be diluted, use TE or other buffer of minimal ionic strength. DNA may denature if diluted in dH₂O
1X Gel Loading Dye, Purple, no SDS:
2.5% Ficoll®-400
10mM EDTA
3.3mM Tris-HCl (pH 8.0@25°C)
0.02% Dye 1
0.001% Dye 2
Due to the limitations of the acrylamide gel technology, one or two extra bands may be visible on the DNA ladders when run on a polyacrylamide gel.

References

Sambrook, J., Fritsch, E.F. and Maniatis, T. (1989). Molecular Cloning: A Laboratory Manual, (2nd ed. 10.51-10.67.

Protocols

Selection Charts

DNA Markers & Ladders Selection Tool

FAQs

Tech Tips

To make it ready-to-load, dilute in TE buffer instead of water.
