Quick-Load^® Purple Low Molecular Weight DNA Ladder

Product Information

Quick-Load Purple Low Molecular Weight DNA Ladder is a pre-mixed, ready-to-load molecular weight marker containing one tracking dye. Tracking dye does not leave a shadow under UV light.

The DNA Ladder consists of a proprietary plasmid which is digested to completion with appropriate restriction enzymes to yield 11 bands suitable for use as molecular weight standards for agarose gel electrophoresis. This digested DNA includes fragments ranging from 25-766 base pairs. The 200 base pair band has increased intensity to serve as a reference point..

• Recommended gel percentage range: 2-3.5%
• Optimum separation on 3%

This product is related to the following categories:

Quick-Load Purple DNA Ladders Products,

DNA Markers & Ladders Products

This product can be used in the following applications:

DNA Analysis

• Reagents Supplied

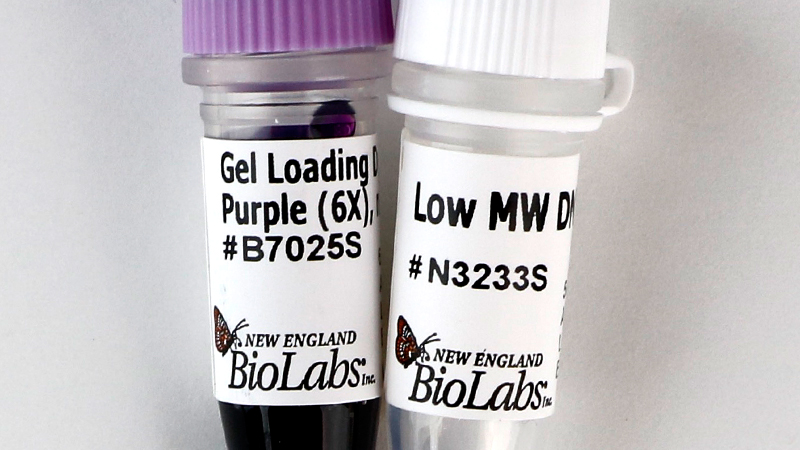

  The following reagents are supplied with this product:

  NEB https://www.neb.com/en/#	Component Name	Component https://www.neb.com/en/#	Stored at (°C)	Amount	Concentration
  N0557S     4       Quick-Load® Purple Low Molecular Weight DNA Ladder N0557SVIAL 4 1 x 1.25 ml 50 µg/ml   Gel Loading Dye, Purple (6X), no SDS B7025SVIAL 25 1 x 1 ml 6 X

• Properties & Usage

  Bases

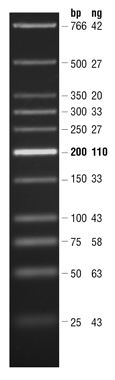

  Fragment	Mass (ng)	bp
  1	42	766
  2	27	500
  3	20	350
  4	33	300
  5	27	250
  6	110	200
  7	33	150
  8	43	100
  9	58	75
  10	63	50
  11	43	25

  Effective Size Range

  25bp to 766bp

  Storage Buffer

  2.5% Ficoll®-400
  10 mM EDTA
  3.3 mM Tris-HCl
  0.001% Dye 2
  0.02% Dye 1
  pH 8 @ 25°C

• Related Products

  Companion Products

  • Low Molecular Weight DNA Ladder
  • Quick-Load® Purple 100 bp DNA Ladder
  • Gel Loading Dye, Purple (6X), no SDS
  • Quick-Load Purple 50 bp DNA Ladder

• Product Notes

  1. Preparation of DNA: The double-stranded DNA is digested to completionwith appropriate restriction enzymes, phenol extracted and equilibratedin storage buffer.
  2. We recommend loading 10 μl (0.5 μg) of Quick-Load Purple Low Molecular Weight DNALadder per gel lane. In general, it is recommended to load 1 µl per mmof gel lane.
  3. The Quick-Load Purple Low Molecular Weight DNA Ladder is not intended for precisequantification of DNA mass but can be used for approximating the mass ofDNA in comparably intense samples of similar size.
  4. Quick-Load Purple Low Molecular Weight DNA Ladder is stable for at least 6 months at 25°C. For long term storage, store at 4°C or -20°C. If stored at -20°C, mix well after thawing. If not well mixed, the load may float out of the wells.
  5. 1X Gel Loading Dye, Purple, no SDS:
     2.5% Ficoll®-400
     10 mM EDTA
     3.3 mM Tris-HCl (pH 8.0@25°C)
     0.02% Dye 1
     0.001% Dye 2

• References

  1. Sambrook, J., Fritsch, E. F. and Maniatis, T. (1989). Molecular Cloning: A Laboratory Manual. (2nd ed.), pp.10.51-10.67, Cold Spring Harbor Laboratory Press.

Protocols, Manuals & Usage

• Protocols

  1. Protocol for Quick-Load Purple Low Molecular Weight DNA Ladder (NEB https://www.neb.com/en/#N0557)

Tools & Resources

• Selection Charts

  • DNA Markers & Ladders Selection Tool

FAQs & Troubleshooting

• FAQs

  1. Why are there extra bands visible on polyacrylamide gels?
  2. Can I use Midori Green with the DNA Ladders from NEB?
  3. Can I use SYBR^® and/or GelRed^® dyes with the DNA Ladders from NEB?
  4. Why is my DNA Ladder floating out the wells and Why are there no bands visible in my DNA ladder gel lane?
  5. Can I use GelRed^® with the Low Molecular Weight and 50 bp DNA Ladders from NEB?
