Quick-Load® 1 kb DNA Ladder

Catalog # Concentration Size List Price Quantity Your Price
N0468L 50 µg/ml 375 gel lanes $237.00
$213.30
N0468S 50 µg/ml 125 gel lanes $107.00
$96.30
Catalog # Size List Price Your Price
N0468L 375 gel lanes $237.00
$213.30
N0468S 125 gel lanes $107.00
$96.30
Catalog #
Qty:

*On-line ordering is for Canadian customers only. Web pricing is applicable only to orders placed online at www.neb.ca
  • Size range: 500 bp to 10 kb
  • Convenient, ready-to-load format
  • Formulated with bromophenol blue dye
  • Easy to identify reference bands



Quick-Load® 1 kb DNA Ladder is a premixed, ready-to-load molecular weight marker containing bromophenol blue as a tracking dye.

The DNA Ladder consists of proprietary plasmids which are digested to completion with appropriate restriction enzymes to yield 10 bands suitable for use as molecular weight standards for agarose gel electrophoresis. The digested DNA includes fragments ranging from 0.5-10.0 kilobases. The 3.0 kb fragment has increased intensity to serve as reference bands.

NEB also offers a Quick-Load version of this ladder with purple dye.

  • Recommended gel percentage range: 0.8-1.2%
  • Optimum separation on 1%

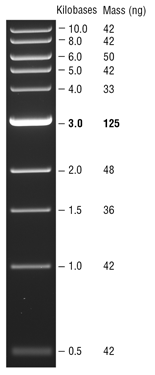

1 kb DNA Ladder visualized by ethidium bromide staining on a 0.8% TAE agarose gel. Mass values are for 0.5 µg/lane. Suggested Load: 10 µl/gel lane.
Reagents Supplied

The following reagents are supplied with this product:

NEB # Component Name Component # Stored at (°C) Amount Concentration
  Quick-Load® 1 kb DNA Ladder N0468SVIAL 4 1 x 1.25 ml 50 µg/ml

Properties & Usage

Bases

Fragment Mass (ng) bp
1 42 10,002
2 42 8,001
3 50 6,001
4 42 5,001
5 33 4,001
6 125 3,001
7 48 2,000
8 36 1,500
9 42 1,000
10a 21 517
10b 21 500

Effective Size Range

500bp to 10,002bp

Storage Buffer

3.3 mM Tris-HCl
11 mM EDTA
0.015% bromophenol blue
0.017% SDS
2.5% Ficoll®-400
pH 8 @ 25°C



Companion Products
Notes
  • Preparation of DNA: The double-stranded DNA is digested to completion with appropriate restriction enzymes, phenol extracted and equilibrated in storage buffer.
  • We recommend loading 10 μl (0.5 μg) of Quick-Load 1 kb DNA Ladder per gel lane.
  • In general, it is recommended to load 1µl per mm of gel lane.
  • The Quick-Load DNA Ladder is not intended for precise quantification of DNA mass but can be used for approximating the mass of DNA in comparably intense samples of similar size.
  • Quick-Load DNA Ladder is stable for at least 6 months at 25°C.
  • For long term storage, store at 4°C or -20°C. If stored at -20°C, mix well after thawing.
References
  • Sambrook, J., Fritsch, E. F. and Maniatis, T. (1989). Molecular Cloning: A Laboratory Manual,(2nd ed.), Cold Spring Harbor: Cold Spring Harbor Laboratory Press
    . 10.51-10.67.
Quality Control Assay
Quality Control tests are performed on each new lot of NEB product to meet the specifications designated for it. Specifications and individual lot data from the tests that are performed for this particular product can be found and downloaded on the Product Specification Sheet, Certificate of Analysis, data card or product manual. Further information regarding NEB product quality can be found here.
Specifications
The Specification sheet is a document that includes the storage temperature, shelf life and the specifications designated for the product. The following file naming structure is used to name these document files: [Product Number]_[Size]_[Version]
Certificate of Analysis
The Certificate of Analysis (COA) is a signed document that includes the storage temperature, expiration date and quality controls for an individual lot. The following file naming structure is used to name these document files: [Product Number]_[Size]_[Version]_[Lot Number]
Safety Data Sheets
