Quick Ligation™ Kit

Catalog #	Concentration	Size	List Price	Quantity	Your Price
M2200L		150 reactions	$624.00		$561.60
M2200S		30 reactions	$158.00		$142.20

Catalog #	Size	List Price	Your Price
M2200L	150 reactions	$624.00	$561.60
M2200S	30 reactions	$158.00	$142.20

The Quick Ligation Kit enables ligation of cohesive end or blunt end DNA fragments in 5 minutes at room temperature . (25°C )

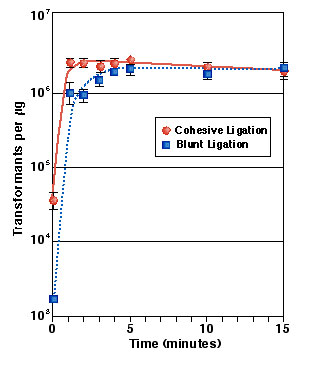

For details on NEB's quality controls for DNA ligases, visit our Ligase Quality page. Ligation Time Course:
LITMUS 28i vector was cut with either EcoRV (blunt) or HindIII (cohesive), treated with calf intestinal phosphatase and gel purified. Blunt inserts from a HaeIII digest of ΦX174 DNA and cohesive inserts from a HindIII digest of λ DNA were ligated into the respective vectors at a 3:1 insert:vector ratio using the Quick Ligation Kit. Ligation products were transformed into chemically competent E. coli DH-5α cells and grown overnight on LB-amp plates at 37°C.

1X Quick Ligation Reaction Buffer:
66 mM Tris-HCl
10 mM MgCl₂
1 mM Dithiothreitol
1 mM ATP
7.5% Polyethylene glycol (PEG6000)
pH 7.6 @ 25°C

Reagents Supplied

The following reagents are supplied with this product:

NEB #

Component Name

Component #

Stored at (°C)

Amount

Concentration

M2200S -20

	Quick Ligase	M2200SVIAL	-20	1 x 0.03 ml
	Quick Ligation Reaction Buffer	B2200SVIAL	-20	1 x 1 ml	2 X

M2200L -20

	Quick Ligase	M2200LVIAL	-20	1 x 0.15 ml
	Quick Ligation Reaction Buffer	B2200SVIAL	-20	4 x 1 ml	2 X

Application Features

Cloning into vectors
Library construction
T/A cloning
Linker ligation
Recirculization of linear DNA

Properties & Usage

Companion Products

Notes

Some of the most critical parameters which should be controlled to ensure successful ligation and transformation are addressed below.
Cells: Competent cells can vary by several logs in their competence. Perceived ligation efficiency directly correlates to the competence of the cells used for transformation. Always transform uncut vector as a control for comparison purposes.
Electroporation: Electroporation can increase transformation efficiency by several logs. Before using the products of a Quick Ligation reaction for electrotransformation, it is necessary to reduce the PEG concentration. We recommend a spin column purification.
DNA: Purified DNA for ligations can be dissolved in dH₂O (Milli-Q™ water or equivalent is preferable); TE or other dilute buffers also work well. For optimum ligation, the volume of DNA and insert should be 10 μl before adding 2X Quick Ligation Buffer. For DNA volumes greater than 10 μl, increase the volume of 2X Quick Ligation Buffer such that it remains 50% of the reaction and correspondingly increase the volume of ligase. The overall concentration of vector + insert should be between 1-10 μg/ml for efficient ligation. Insert:vector ratios between 2 and 6 are optimal for single insertions. Ratios below 2:1 result in lower ligation efficiency. Ratios above 6:1 promote multiple inserts. If you are unsure of your DNA concentrations, perform multiple ligations with varying ratios.
Time: Most ligations performed using the Quick Ligation™ Kit reach an end point at 5 minutes or less at 25°C. Incubation beyond this time provides no additional benefit. In fact, transformation efficiency starts to decrease after 1 hour and is reduced by up to 75% if the reaction is allowed to go overnight at 25°C.
Biology: Some DNA structures, including inverted and tandem repeats, are selected against by E. coli. Some recombinant proteins are not well tolerated by E. coli and can result in poor transformation or small colonies.

Protocols

Usage Guidelines

Tips for Maximizing Ligation Efficiencies

Selection Charts

Web Tools

FAQs

Troubleshooting

Troubleshooting Tips for Ligation Reactions

Citations

See more details on Bioz

Quality Control Assay

Quality Control tests are performed on each new lot of NEB product to meet the specifications designated for it. Specifications and individual lot data from the tests that are performed for this particular product can be found and downloaded on the Product Specification Sheet, Certificate of Analysis, data card or product manual. Further information regarding NEB product quality can be found here.

Specifications

The Specification sheet is a document that includes the storage temperature, shelf life and the specifications designated for the product. The following file naming structure is used to name these document files: [Product Number]_[Size]_[Version]

M2200S_L_v1

Certificate of Analysis

The Certificate of Analysis (COA) is a signed document that includes the storage temperature, expiration date and quality controls for an individual lot. The following file naming structure is used to name these document files: [Product Number]_[Size]_[Version]_[Lot Number]

Safety Data Sheets

Legal And Disclaimer

Products and content are covered by one or more patents, trademarks and/or copyrights owned or controlled by New England Biolabs, Inc (NEB). The use of trademark symbols does not necessarily indicate that the name is trademarked in the country where it is being read; it indicates where the content was originally developed. The use of this product may require the buyer to obtain additional third-party intellectual property rights for certain applications. For more information, please email busdev@neb.com.

This product is intended for research purposes only. This product is not intended to be used for therapeutic or diagnostic purposes in humans or animals.
